Working with OpenStack

The faculty's cloud uses OpenStack to provide students with the ability to create and configure virtual machines in the faculty's cluster.

Connect to Horizon, the web front-end of Openstack, at https://cloud.grid.pub.ro/ and authenticate using your LDAP username and password.

Most labs will rely on interacting with Openstack using Horizon.

Most virtual machine images (base virtual disks) use cloud-init to automatically configure the virtual machine. As part of the first run of the virtual machine, cloud-init will re-generate SSH host keys, reset the default user's password to an invalid value (and usually make them a sudoer without requiring the password), disable root login, and inject the user's keys into the virtual machine.

Connection to proxy​

We will use fep.grid.pub.ro as a proxy for our connections to the virtual machines. You can connect to fep using ssh user.name@fep.grid.pub.ro and entering the OTP for your account when prompted.

We also recommend using -o ServerAliveInterval=100 to instruct the SSH client to send beacons to the server every 100 seconds, so you do not get disconnected due to inactivity, and -X for X11 forwarding; the final command looks like:

ssh user.name@fep.grid.pub.ro -X -o ServerAliveInterval=100

The short format will likely be enough in most cases.

Important

If you are using a Windows system, recommend creating a Linux virtual machine with a graphical interface, or a WSL Linux distribution. You could also use PuTTY as the SSH client.

SSH key pair generation​

Because the virtual machine's user's password is reset to an invalid value by cloud-init, you will not be able to log into the virtual machine using password login. Instead, you must first create an SSH key that will be automatically added to the virtual machine's default user's authorized key.

First of all, you must generate an SSH key on fep. Connect to fep and run the commands below to create a 4096-bit RSA key and print the public part of it. The permissions on the .ssh directory must be 0700, otherwise the ssh CLI tool will refuse to use the keys inside.

[user.name@fep8 ~]$ mkdir -p ~/.ssh
[user.name@fep8 ~]$ chmod 0700 ~/.ssh
[user.name@fep8 ~]$ ssh-keygen -t rsa -b 4096 -f ~/.ssh/id_openstack -C "openstack-ssh-key"
[user.name@fep8 ~]$ cat ~/.ssh/id_openstack.pub

After having the public key, go to Horizon and access the Project → Compute → Key Pairs section. Afterwards, click on the Import Public Key button (highlighted in green in the image below).

OpenStack key - overview

In the form, enter a name for the key, select SSH Key for Key Type and paste the public key into the Public Key field.

OpenStack key - import

Create virtual machines​

Now that the SSH key pair is available, we can start creating virtual machines. Note that you can only use a limited amount of total resources. You can see graphs of the total amount of resources you can use, and the amount of resources you have used so far through the Horizon interface, in the Project → Compute → Overview section. In the image below, resources are limited to 4 CPU cores and 4GB of RAM.

OpenStack resource - overview

To create a new virtual machine, go to Project → Compute → Instances and click on Launch Instance. This will open a configuration dialog where you must set the parameters for the virtual machine.

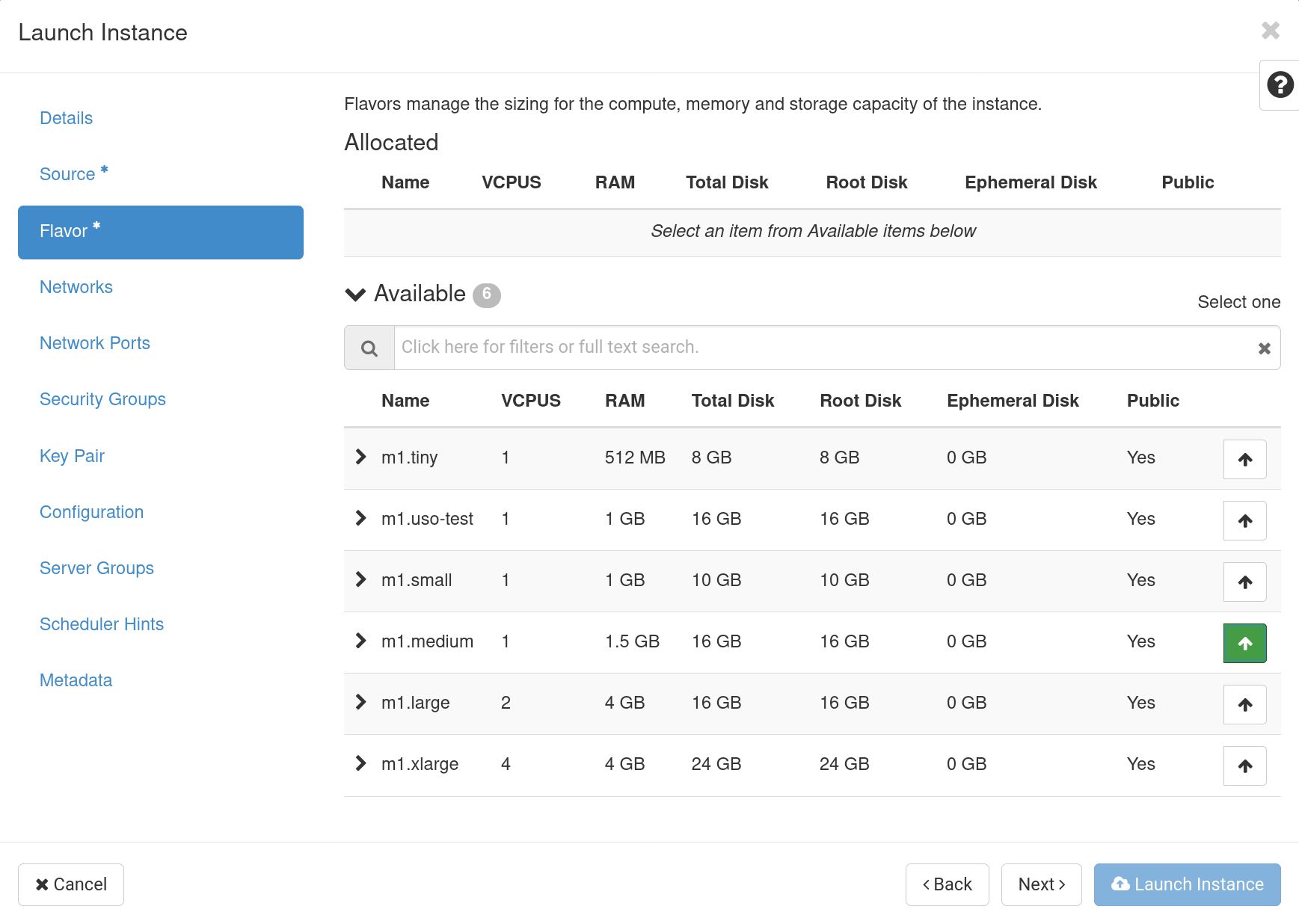

New virtual machines can only be configured using pre-defined configurations, called Flavors with a set number of resources in each category.

When creating a virtual machine, you have to setup the virtual machine’s configuration. After pressing Launch instance, a configuration window such as the one in the image below will be displayed on screen.

Important

Menus where you can only choose one option will automatically use the option by default. However, if two or more options are available (e.g., two networks or two SSH keys), you must choose one when creating each virtual machine. Otherwise, none will be chosen, and you may not be able to connect to the virtual machine.

Make sure you go through each of the following tabs.

In the Details Menu, you must provide a suitable name for your virtual machine. In our case, the virtual machine will be named scgc-lab00.

OpenStack VM Create - Details

Launch instance​

After setting up the previous configuration, you can press Launch Instance. After creation, you should see the following output:

OpenStack VM Instance

In the previous image, you can see information about the newly created virtual machine:

  • Instance Name: scgc-lab00 – the virtual machine’s name that was configured through the Details Menu
  • Image Name: SCGC Template – the virtual machine’s image that was chosen through the Source Menu
  • IP Address: 10.9.X.Y – the IP address that is assigned for the virtual machine. We will use this IP address to connect to the virtual machine.
  • Key Pair: id_openstack – the key pair used for connection
  • Actions – drop down button from where you can reset, rebuild or delete the current instance.
important

The virtual machine will run on one of the servers in the cluster. If the server did not have the image before you tried creating the virtual machine, the image will have to be copied and converted on the server before being used. This means that sometimes the virtual machine will boot slower (up to 10 minutes of wait time). During this time, the ''Power State'' will be shown as ''Spawning''.

Connect to the virtual machine​

The picture bellow shows how you can connect to the virtual machine. Since the virtual machine runs in OpenStack (i.e. in the faculty's cluster) and the assigned IP address is a private address, you cannot directly connect to the virtual machine.

ConnectConnect

To connect to the virtual machine, you must first connect to fep, which is a front end computer that runs in the faculty's cluster (i.e. from here you can access the OpenStack network). Then, connect to the virtual machine. Pay attention to the IP address that was assigned to your virtual machine and to the keypair name you have previously created and provided to OpenStack. Please note that the username you must use when logging in to the virtual machine may also differ. SCGC Template uses the username student.

[user.name@fep8 ~]$ ssh -i ~/.ssh/id_openstack student@10.9.X.Y
The authenticity of host '10.9.X.Y (10.9.X.Y)' can't be established.
...
Are you sure you want to continue connecting (yes/no)? yes # you have to write yes and press Enter
...
student@scgc-lab00:~$

Notice that the first time you want to connect to a new virtual machine, the SSH Agent will ask you to confirm the connection.

Possible issues​

Click to expand

When connecting through SSH, the following issues may appear:

  • the virtual machine has started, but the SSH daemon has not started yet. In this case, you may see a connenction refused message. In this case, if the service should start at boot time, wait until the virtual machine finishes the booting process.
[user.name@fep8 ~]$ ssh -i ~/.ssh/id_openstack student@10.9.X.Y
ssh: connect to host 10.9.X.Y port 22: Connection refused
  • you have connected to a virtual machine with the same IP address in the past (you have created another virtual machine, or rebuilt the current one), and SSH had saved its key fingerprint. Because the virtual machines are initialized through ''cloud-init'' the SSH host keys will differ between instances. If this is the case, you must remove the SSH key entry in ''~/.ssh/known_hosts'' before attempting to connect again.
[user.name@fep8 ~]$ ssh -i ~/.ssh/id_openstack student@10.9.X.Y
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@    WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED!     @
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
IT IS POSSIBLE THAT SOMEONE IS DOING SOMETHING NASTY!
Someone could be eavesdropping on you right now (man-in-the-middle attack)!
...
  • the virtual machine refused the SSH key (and will probably request password authentication). This is likely because the public SSH key is not in the virtual machine user's ''~/.ssh/authorized_keys'', because it was either removed, or not properly injected through ''cloud-init''. To check if the key was injected, click on the virtual machine in the ''Project'' → ''Compute'' → ''Instances'' section, and then navigate to the ''Log'' tab. If the key was added properly, you should see an output like the following towards the end of the log. If the key was not added, or was removed after logging in and you cannot access the virtual machine, you must remove and create the virtual machine again.
ci-info: +++++++++Authorized keys from /home/student/.ssh/authorized_keys for user student++++++++++
ci-info: +---------+-------------------------------------------------+---------+-------------------+
ci-info: | Keytype |                Fingerprint (md5)                | Options |      Comment      |
ci-info: +---------+-------------------------------------------------+---------+-------------------+
ci-info: | ssh-rsa | 00:11:22:33:44:55:66:77:88:99:aa:bb:cc:dd:ee:ff |    -    | openstack-ssh-key |
ci-info: +---------+-------------------------------------------------+---------+-------------------+

Connect to the virtual machine with X forwarding​

OS​

Linux uses a client-server architecture for the X window system. SSH allows you to forward graphical applications information through the X11 forwarding functionality.

Linux comes by default with the X11 client functionality, so if the SSH server allows X11 forwarding, you can use the -X option when connecting to the remote system. If you must go through multiple systems when connecting (e.g., you connect to fep before connecting to the Openstack virtual machine), you must set this flag for each connection.

user@workstation ~ $ ssh -X user.name@fep.grid.pub.ro
...
[user.name@fep8 ~]$ ssh -X -i ~/.ssh/id_openstack student@10.9.X.Y

Because X11 will forward the entire graphical interface, we recommend using it rarely, and even enabling compression by passing the -C flag to the SSH client. If you only need to access information on a specific port using an application that is already installed on your local system (e.g., a webpage that you access using a browser), you should use the -D flag for dynamic port forwarding (proxy), or -L for regular port forwarding (one-to-one).

Testing​

To test that X11 forwarding works, we will use some simple apps. On the virtual machine, install x11-apps and the run xeyes or xclock. If X11 port forwarding works properly, you should see a newly opened window on your system, with a pair of eyes that follow your mouse pointer, or an analog clock, respectively.

student@scgc-lab00:~$ sudo apt install -y x11-apps
student@scgc-lab00:~$ xeyes
student@scgc-lab00:~$ xclock
important

To open the SSH connections, you can open multiple SSH connections to the virtual machine in Openstack, or use a terminal multiplexing application like screen or tmux (this is the recommended option, since it also allows you to not lose your session even when losing the internet connection).

For example, for tmux, write tmux in the virtual machine's terminal. You will see a new interface appear, with a green ribbon at the bottom. By default, tmux uses the <C-b> key combination as the control sequence (<C-b> is the notation used by vim for "hold ctrl and press b", and we will use it here). To create a second terminal in horizontal split mode, press <C-b>" (that is the key combination ctrl+b and then double quotes "). Afterwards, you can navigate between the panes using <C-b><arrow-key> - e.g., <C-b><down-arrow> to go to the next pane down from your current position.

Advanced Network Configuration​

Click to expand

If you cannot communicate with another virtual machine from OpenStack, it's because all traffic is Openstack is routed through a firewall. To view the allowed rules in the default security policy (the one your virtual machine uses unless you have created another policy group and set during the virtual machine's creation process), go to the Horizon dashboard, navigate to Project → Network → Security Groups and click on Manage Rules for the desired security groups.

You can see that by default, all traffic generated by the virtual machine is allowed outside (the rules specifying the Egress direction, for both IPv4 and IPv6 allow all IP protocols and port ranges, and to any IP (CIDR 0.0.0.0/0 for IPv4 and ::/0 for IPv6).

However, for input traffic, only specific ports are allowed from any IP (see the rules for IPv4 and CIDR 0.0.0.0/0), while other ports are only accessible from virtual machines with a network interface in the default security group (the rules with default under the Remote Security Group).

Overall, these rules are meant to allow connections coming from any IP (e.g., fep) to access only certain services (e.g., SSH on port 22, HTTP(S) on ports 80, 443 and 8080, RDP on port 3389, VNC on port 5901), while your virtual machines can communicate on any port.

To allow the other virtual machine to communicate with your virtual machine, click on Add Rule and select the Other Protocol rule, the Ingress direction, -1 as IP protocol, CIDR type for remote, and 10.9.A.B/32 (the desired virtual machine's IP address) for CIDR value. You could also use 0.0.0.0/0 for CIDR, but this is less secure, since it would allow any IP to connect to your virtual machine's ports, thus all security measures will have to be implemented on the virtual machine itself.

OpenStack Security Group - CIDR

Connecting to VMs from your system​

Instead of manually connecting to fep every time you want to access the virtual machine, and from there connecting to the virtual machine, you can use fep as a jump host. Follow the steps below to make connecting easier.

Storing SSH keys

Both SSH keys and certificates are cryptographic material that must be kept private. Only keep your keys on your personal computer or trusted devices, and NEVER copy them on shared or untrusted devices. Leaked SSH keys can be used to impersonate you.

For improved security, always encrypt your SSH keys and keep them only on encrypted devices (even if they are individually encrypted).

Connecting to fep using SSH keys​

Connecting to SSH hosts using a password is strongly discouraged. Modern security directives advise using SSH keys or certificates when connecting to remote SSH hosts.

First, you will need to have a local SSH key to connect to fep. You can repeat the steps in the SSH key pair generation section on your local system. For the purposes of this tutorial, we will consider that you have created a key named id_fep, with its public counterpart named id_fep.pub.

After the key is created, you can then copy the public key to the ~/.ssh/authorized_keys file on the fep server. You can do this by displaying the contents of the public key by running cat ~/.ssh/id_fep.pub on your local system, and then appending the line to the ~/.ssh/authorized_keys file on fep.

After the public key has been copied to the server, you will be able to connect to the server using the command below:

ssh user.name@fep.grid.pub.ro -X -o ServerAliveInterval=100 -i ~/.ssh/id_fep

Permanent SSH configurations​

SSH parameters can be placed in a special file, called the SSH config. When starting an SSH-based connection (also applies to scp and sftp), the ssh command reads global and local configuration files, but parameters can also be overridden by the command line (you can read the ssh_config man page for more details).

Append the following configurations to your ~/.ssh/config file.

Host fep fep.grid.pub.ro
    Hostname fep.grid.pub.ro
    User user.name
    ForwardX11 yes
    ServerAliveInterval 100
    IdentityFile ~/.ssh/id_fep

Afterwards, you can use either of the following commands, and connect to the server as if you had issued the command in the previous sub-section.

ssh fep # option 1
ssh fep.grid.pub.ro # option 2

You can also change connection parameters by passing them in the command line. For example, if you want to connect using a different username, you could use:

ssh other.user@fep

Common parameters can be added using a general wildcard at the end of the configuration file. For example, if you want to keep all SSH connections alive, add the following to the end of the configuration file (note: the first encountered value for a parameter is used, regardless of the matched host rule; because of this, wildcards should be added to the end of the config):

Host *
    ServerAliveInterval 100

Connecting using an SSH jump host (proxy)​

If you want to connect to the OpenStack virtual machines from your system, you will have to use fep as your proxy jump host. The proxy jump option first connects to the jump host and then establishes a TCP connection from it to the host you wish to connect to.

You will need to have an SSH key that is added to the virtual machine in order to connect. To do this, you have two options:

  • generate a new key locally (or reuse the id_fep key) and replace the SSH key that you previously used, both in the OpenStack configuration (delete the old key; will be injected only in new VMs) and on the target VMs;
  • copy the key that you had generated previously on fep to your local system.

Regardless of your choice, we will assume that the key is also named id_openstack on your local system.

In order to use fep as the proxy host, add the -J fep.grid.pub.ro parameter, and then use the other parameters as if you could connect to the VM directly:

ssh -J fep.grid.pub.ro -i ~/.ssh/id_openstack -X student@10.9.X.Y
Proxy host SSH parameters

Most parameters that you provide on the command line will be used only for connecting to the VM, and not for the proxy host, so configurations for the proxy host must be added to the SSH config file.

You can also configure the proxy jump in you SSH config, like in the following example:

Host openstack-vm
    Hostname 10.9.X.Y
    User student
    IdentityFile ~/.ssh/id_openstack
    ForwardX11 yes
    ProxyJump fep.grid.pub.ro
Generic proxy configuration

You can create a sort of generic configuration for all VMs that run in OpenStack, to automatically use fep as the proxy host when connecting. To achieve this, add the following to your SSH config file

Host openstack-*
    User student
    IdentityFile ~/.ssh/id_openstack
    ForwardX11 yes
    ProxyCommand ssh fep.grid.pub.ro -W $(echo "%h" | cut -d- -f2):%p

Afterwards, you can connect using the following command, which will achieve a similar result to the SSH command above:

ssh openstack-10.9.X.Y

Delete the virtual machine​

After each lab, and whenever you no longer need a virtual machine, please delete it. Go to the Horizon dashboard, go to Project → Compute → Instances and delete the virtual machine. You can either select all virtual machines your wish to delete from their checkbox on the left, and then click on Delete Instances, or select Delete instance from the dropdown menu on the right.

It would also be a good idea to delete the security group rule you have previously created earlier if you do not need to allow communication with machines outside your project.
